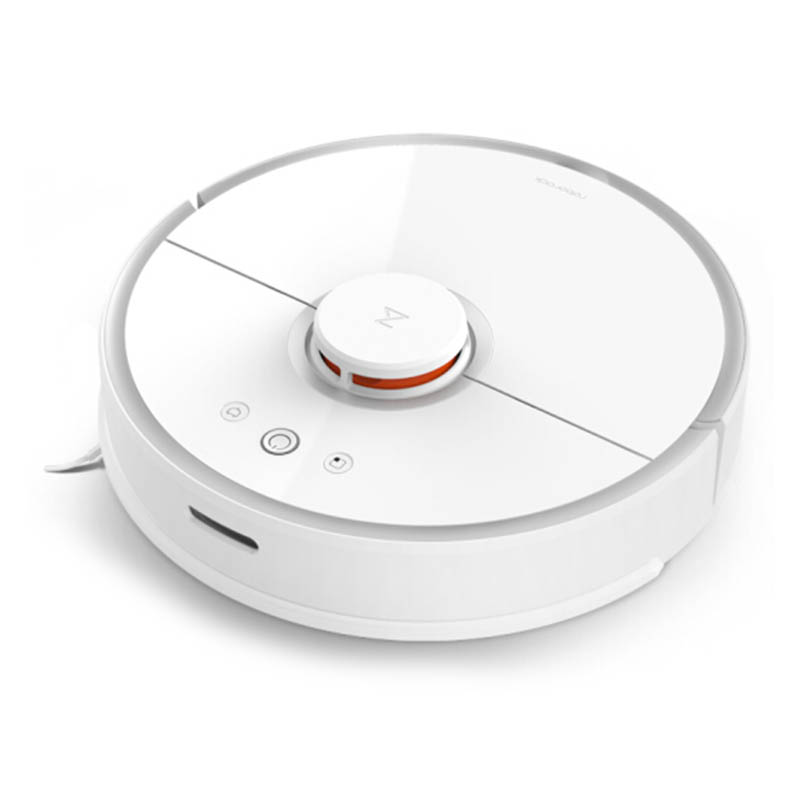

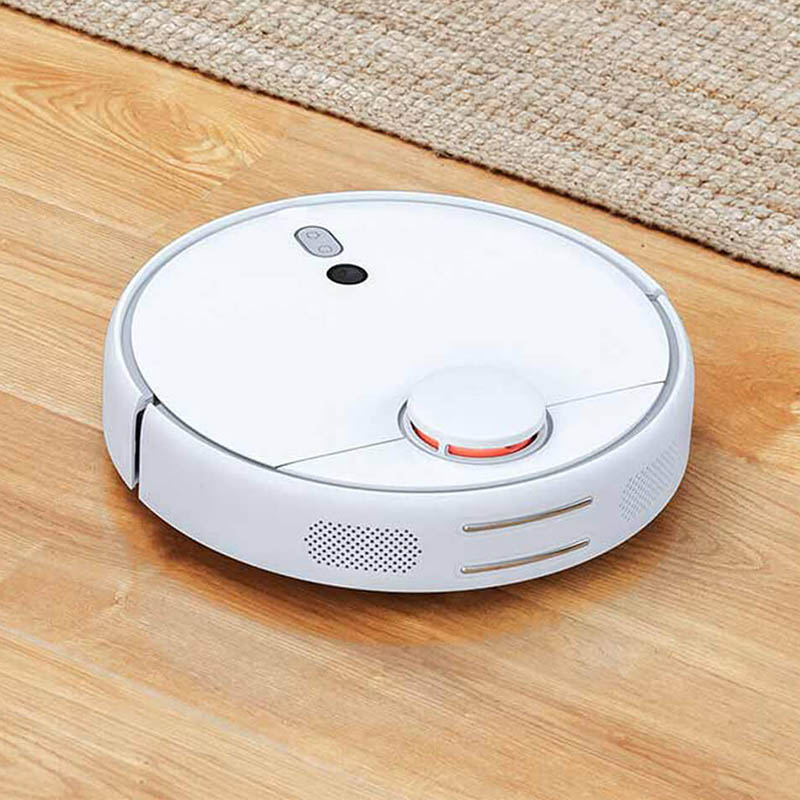

Sweeping Robot Moulding

In addition, our company has established cooperative relationships with plastic raw material suppliers, printing manufacturers, etc. to ensure the supply of raw materials and printing quality. Through our rich experience and perfect supply chain, our company can provide customers with high-quality customized Sweeping robot products to meet their specific needs. At the same time, we have 10 years of professional foreign trade service experience, understand the foreign trade process, and better serve our customers. For Sweeping robot products, we can make corresponding plastic parts, which is mainly done through injection molds.

The production of injection molds for sweeping robots needs to take into account complex structural molding, high precision requirements and production efficiency

1. Core design points:

1) The outer shell of sweeping robots often contains multi-directional undercut structures (such as roller brush cover buckles and sensor holes), and a combination of front mold sliders (T-slots or hydraulic drives) and rear mold inclined tops is required. For example, the roller brush cover bracket needs to be embedded with a metal rod to enhance strength, and the mold needs to be designed with split inserts and a press table structure to ensure accurate positioning of metal parts and plastic coating

2) The parting surface avoids the appearance surface, and the gate is usually selected in the battery compartment or the internal hidden area. Point gates or diving injection are used to avoid affecting assembly and appearance

2. Precision core and cooling system

1) Slender cores (such as fan blade mounting holes) need to be made of high-wear-resistant steel (NAK80 or S136), and built-in copper cooling rods to improve heat dissipation efficiency and prevent deformation.

2) The four corners of the mold core are designed with 5° jaw positioning, and the mold clamping accuracy is ≤0.01mm with the guide pin and guide sleeve. Some high-precision molds are equipped with double positioning blocks (tapered first positioning block and second positioning block) to improve stability

3. Hot runner and ejection optimization

1) Hot runner system is recommended for multi-cavity molds to reduce waste and ensure melt uniformity, which is suitable for small batch multi-component synchronous production such as rear wheel guards.

2) The ejection mechanism uses Z-shaped ejector and manipulator to cooperate with demolding. Transparent parts need to avoid scratches. Some cases integrate CCD visual system to achieve automatic sorting

4. Technical difficulties and solutions

1) Complex structure one-piece molding

Problem: The shell sound guide hole or the empty tube inside the U-shaped pendant is prone to functional defects due to welding marks.

Solution: Use banana-shaped gate design + in-mold hot cutting technology to optimize the melt flow path, and monitor dimensional consistency through SPC process control

2) Insert injection molding stability

Problem: The metal rod is prone to offset or uneven rubber coating when embedded in the roller brush cover bracket.

Solution: Pre-embed positioning pins in the mold, split insert design to reserve mold repair margin, combined with liquid silicone (LSR) secondary injection molding to improve adhesion

3) Automated production adaptation

Problem: The efficiency of manual inspection of small transparent parts (such as sensor covers) is low.

Solution: Integrate CCD visual system and robotic arm to achieve automatic sorting and defect identification. Some manufacturers use 100,000-level dust-free workshops to ensure light transmittance

5 Material and process selection

1) Mold steel

Preferably choose 718H, S136 (corrosion resistance), NAK80 (high polishability), key inserts require vacuum quenching treatment to extend life

2) Injection molding parameters

Use 90-700T injection molding machine, mold temperature controller accurately controls temperature (±1℃), transparent parts require oil circulation system to reduce shrinkage deformation

3) Surface treatment

The shell often needs frosted surface or leather grain treatment, and the mold cavity uses etching process to improve anti-slip and aesthetics

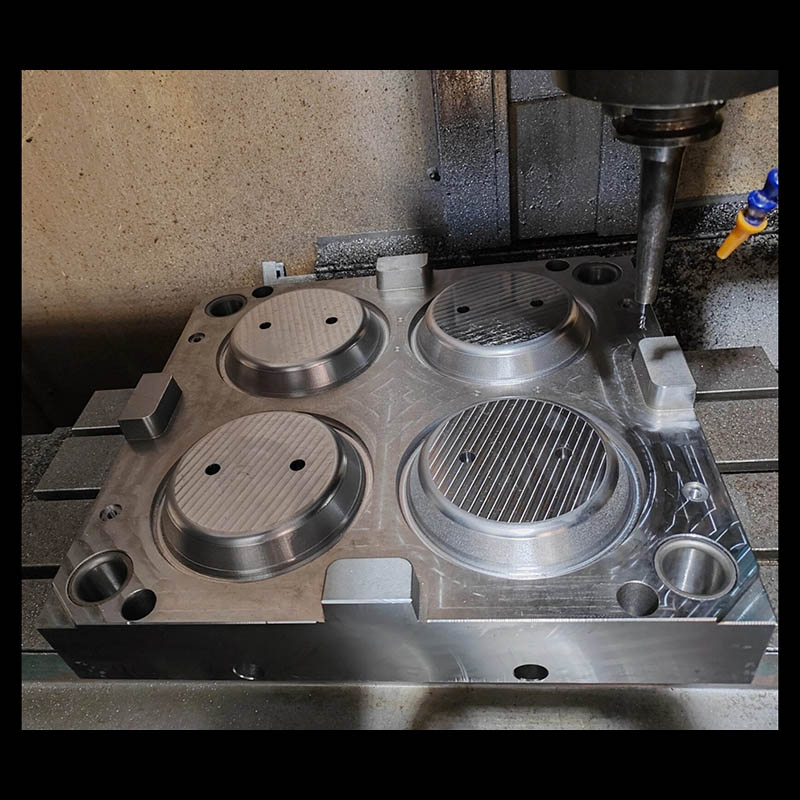

Sweeping robot Mold

We are a Sweeping robot mold manufacturer, providing high-quality Sweeping robot mold manufacturing. As long as you want to customize/develop Sweeping robot products, you can find us. We have professional injection mold design and mature manufacturing technology, providing you with one-stop service, from product design-mold making-product production-product packaging-product transportation, we can help you in every link. As long as you come to us, we will provide you with the ultimate service and satisfy you in terms of product quality, production time, information dialogue, etc.

Plastic Injection Mould making

Plastic molding specifications

Mold design:

Transaction process:

Mold testing:

Product packaging

Factory

We are Custom Plastic Mold factory. Our factory is plastic injection mold maker. we has 17 years of experience in professional custom plastic mold and 10 years of foreign trade experience. We are custom Plastic Mold supplier. We can provide custom Plastic Mold service. Our factory can make the Injection molded plastic parts, and the quality of the products will satisfy you.

We have more than 50 high-end machines and hundreds of engineers and designers. We can provide one-stop service, from product design - mold making - product production - product packaging - transportation. We have a complete production chain. We can meet all your requirements.

Services we provide:

Professional custom mold service, Plastic mold design and manufacturing .plastic product production, product design, mold design, blow mold customization, rotational mold customization, die-casting mold customization. 3D printing services, CNC manufacturing services, product packaging, customized packaging, shipping services.

We always adhere to the principles of quality first and time first. While providing customers with the highest quality products, try to maximize the production efficiency and shorten production time. We are proud to tell every customer that our company has not lost any customer since its establishment.If there is a problem with the product, we will seek a solution actively and take responsibility to the end.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are manufacturers.

Q2. When can I get the quotation?

A: We usually quote within 2 days after we get your inquiry.

If you are very urgent, please call us or tell us in your email so that we can quote for you first.

Q3. How long is the lead-time for mold?

A: It all depends on the products' size and complexity. Normally, the lead time is 25 days.

Q4. I have no 3D drawing, how should I start the new project?

A: You can supply us a molding sample, we will help you finish the 3D drawing design.

Q5. Before shipment, how to make sure the products quality?

A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker.

We will supply you a video for production process detail include process report, products size structure and surface detail, packing detail and so on.

Q6. What is your payment terms?

A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.

B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit for best quality products.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
